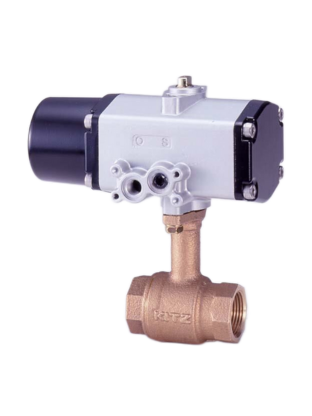

- Compact and light actuators
- High durability and easy for maintenance
- Rack and pinion drivers
- Direct mounting of standard accessories
- Quick operation (less than 1 sec)
- Small pressure loss (large flow volume)
- Bi-directional
|
Specification
Specification
Type
|
C-1 |
C-2 |
CS-1 |
CS-2 |
FBS-1 |
|---|---|---|---|---|---|
| Operating media | Instrumentation air | ||||
| Standard operating pressure | 0.4 MPa (60 psi) | ||||
| Operating pressure range | 0.4 – 0.7 MPa (60 – 100 psi) |
0.3-0.7 MPa (43-100 psi) |
|||
| Output torque *1 | 3.9 Nㆍm | 8.5 Nㆍm | 1.3 Nㆍm | 3.1 Nㆍm | 7.6 Nㆍm |
| Housing shell test pressure | 1.0 MPa (140 psi) | ||||
| Angle of revolution | 90° (+1° to +5°) | 90° ±7° | |||
| Cylinder volume (Liter) | 0.073 | 0.16 | 0.033 | 0.071 | 0.15 |
| Operation time | Max. 1 s*4 | ||||
| Service temperature range*2 | -20°C to +60°C -4°F to +140°F |
'-20°C to +80°C -4°F to +176°F |
|||
| Ambient condition *3 | Indoor | ||||
